XS Injectors eXact Match - The Worlds Most Accurate Injector Sets

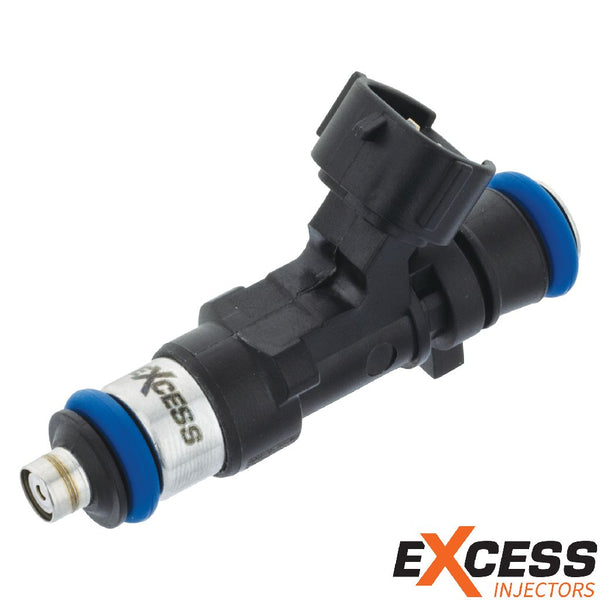

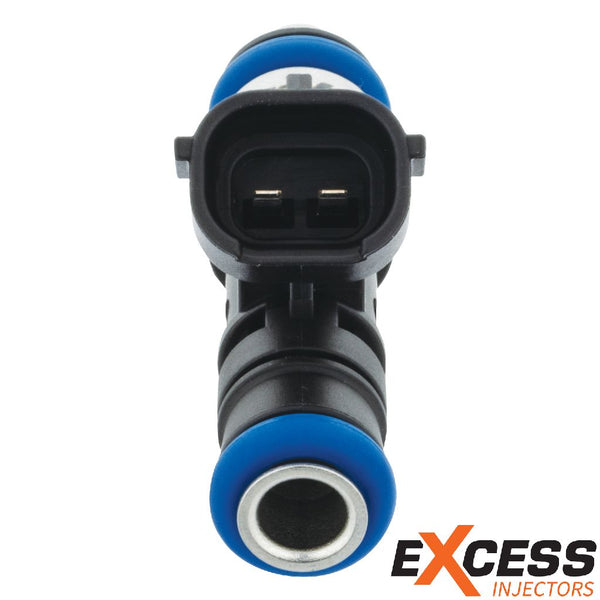

A full set of 6 XS Injectors with everything you need for a direct fit.
Suits RB25 Neo
Comes with one piece adaptors for the wiring harness so no need to cut the harness. You can swap them out for pigtails or plugs and pins at no extra cost. Just let us know when you place the order
See for yourself
Tight Testing Controls
All XS Injectors are tested on our custom built test bench to J1832 standards.
- Pressure is electronically controlled at 3 bar
- Temperature is controlled at 21°C
- Votage is controlled at 14V
Because the testing parameters are so tightly controlled we get the same results everytime we test them.
Exact Match Data
We don't just dynamically flow test injectors we also measure the dead time of each injector. Every set is:
- Dynamically flow matched within 1%
- Deadtime matched within 2%
How many points are tested?
- over 6,500 flow points are tested and recorded on every injector.
- over 265,000 measurements for flow, pressure, voltage etc are recorded for every injector
- tuning data specific to your set is available for download to make an easy tune
All of these results are stored on our cloud server, you can log in to view the data specific to your set at any time.
If an injector has an issue not related to contamination or damage from external forces we simply replace the injector for you. It's that easy.
We know exactly how your injector set should flow and what the deadtimes are because we store that information on the cloud server. We just replace the injector with another one that matches your injector set exactly.
- Brand: XS
- Ohms (Resistance): High
- Length (o-ring to o-ring): 55mm - 3/4 Length
- Top O-Ring Diameter: 14mm
- Comes with: NA
